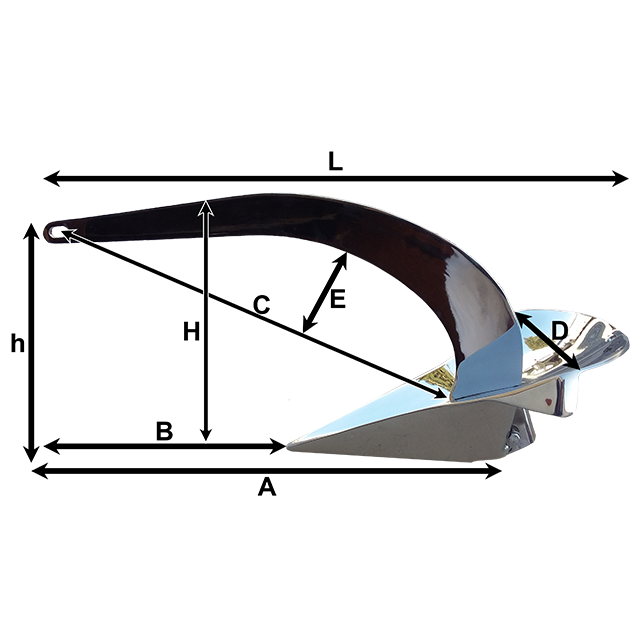

Dimensions of all Spade anchor models
| en mm | A | B | C | D | E | L | H | h |
| SPADE 40 | 505 | 265 | 435 | 235 | 90 | 600 | 280 | 185 |
| SPADE 60 | 570 | 315 | 520 | 275 | 105 | 695 | 330 | 250 |
| SPADE 80 | 640 | 330 | 580 | 330 | 115 | 770 | 400 | 285 |
| SPADE 100 | 720 | 395 | 690 | 360 | 140 | 880 | 430 | 330 |
| SPADE 120 | 785 | 425 | 740 | 395 | 155 | 960 | 450 | 380 |
| SPADE 140 | 820 | 470 | 795 | 415 | 170 | 1050 | 500 | 370 |
| SPADE 160 | 910 | 480 | 860 | 445 | 175 | 1120 | 530 | 380 |
| SPADE 180 | 970 | 515 | 905 | 470 | 190 | 1180 | 560 | 420 |
| SPADE 200 | 995 | 530 | 915 | 500 | 200 | 1200 | 580 | 425 |
| SPADE 240 | 1225 | 645 | 1050 | 580 | 240 | 1405 | 600 | 500 |
| SPADE 380 | 1322 | 750 | 1273 | 720 | 270 | 1664 | 805 | 700 |
See below for more precise dimensions of Spade anchor yards
Click here to view more precise dimensions of Spade anchor yards
Download the template corresponding to the model you need below
Click here to download the templates for all Spade anchor models
